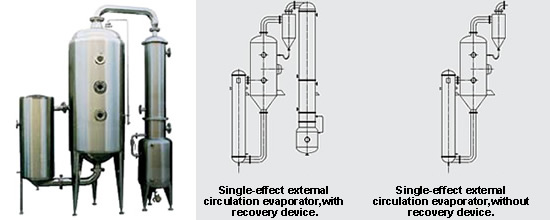

 DZ Series Single-effect External Circulation Evaporato
>> Features
This equipment is consists of tubular external heater, vacuum evaporator and auxiliary device. It features short heating time,rapid evaporation speed and can keep the effectivity of thermosensitive materials well.
It adopts foam-removing with two-stage and can reduce
the loss of feed liquid greatly.
Simple structure, easy cleaning.
Large Concentration ratio, the largest could be 1.35.
The parts touched with materials are made of good quality of stainless steel, which meet the heath requirement of pharmacy and food.
>> Applications
This equipment is suitable for the evaporation process of liquid materials in the industries of pharmacy,food, chemical
industry, light industry, etc.
Technical parameters：
| Model |
DZ-350 |
DZ-500 |
DZ-700 |
DZ-1000 |
DZ-1500 |
DZ-2000 |
| Amount of evaporation(kg/h) |
350 |
500 |
700 |
1000 |
1500 |
2000 |
| Heating area (m2) |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
| Vacuum degree in-tank (Mpa) |
7 |
8 |
10.5 |
18 |
25 |
35 |
| Steam pressure(Mpa) |
13 |
16 |
20 |
30 |
50 |
70 |
| Steam consumption(kg/h) |
1.5 |
2 |
3 |
5 |
7 |
10 |
| Device weight(kg) |
0.08 |
0.08 |
0.08 |
0.08 |
0.08 |
0.08 |
|
|
|
