YZG/FZG Series Vacuum Dryer

>> Technical parameters

Name/specification	YZG-600	YZG-100	YZG-1400	FZG-15
Interior size of chamber	φ600×976	φ1000×1527	φ1400×2054	1500×1220×1400
Exterior size of chamber	1153×810×1020	1740×1226×1385	2386×1657×1800	2060×1513×1924
Layers of baking shelf	4	6	8	8
Interval of baking shelf	81	98	102	122
Size of baking tray	310×600×45	460×640×45	460×640×45	460×640×45
Number of baking tray	4	12	32	32
Drying capacity (kg)	8	24	64	64
Permitted pressure inside the pipe of baking shelf(MPa)	≤0.784	≤0.784	≤0.784	≤0.784
Temperature inside chambe ℃	≤150	≤150	≤150	≤150
Vacuum level inside chamber without load	0.09-0.096
Type and power of vacuum pump without condenser	SK-1.5 4kw	SK-3.5 5kw	SK-6 11kw	SK-6 11kw
Weight of drying chamber(kg)	250	800	1000	2100

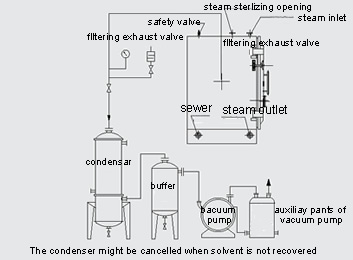

>> Flow chart
