FG Series Positive and Negative Two Grade Air Stream Dryer

>> Applications
The equipment is widely used for drying granules and powder raw materials from foodstuff, chemical, pharmaceutical and
construction materials industries. The products used this kind of equipment for drying are as follows; starch, glucose, fish powder, sugar, edible sugar, lees, feed, plastic resin, coal powder, dyestuff and so on.

>> Principle

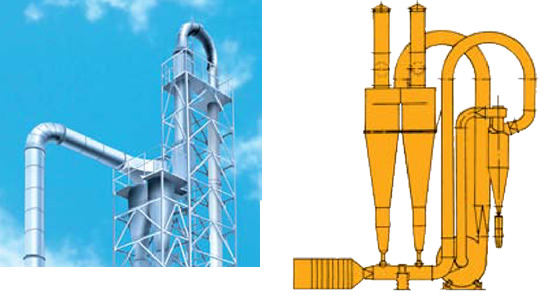

The working principle is as follows: the drying of raw material is divided into two steps. First, raw material is dried with the mixing air of the tail air from the second dry and compensating hot air under positive pressure. The dried tail air is discharged to atmosphere. Second, the dried semi-finished product is carried to the second drying with fresh hot air under negative pressure. The finished product is measured and packaged. The used high temperature and low moisture tail air is used for the first grade drying. In this way the good circulating process is completed. The supplementary hot air may be adjusted freely. Therefore the machine has a wide application.

>> Technical parameters

Spec	Unit	FG0.25	FG0.5	FG0.9	FG1.5	FG2.0	FG2.5	FG3.0	FG3.5
Moisture to be evaporated	Kg/h	113	225	450	675	900	1125	1150	1491
Power	Kw	11	18.5	30	50	75	90	110	110
Occupied area	m2	3.5×2.5	7×5	7×6.5	8×7	11×7	12×8	14×10	14×10
Heat efficiency	%	＞60	＞60	＞60	＞60	＞60	＞60	＞60	＞60
