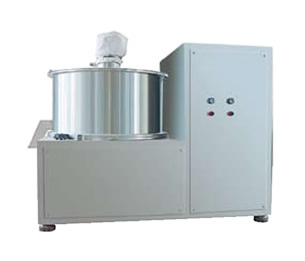

 QZL Series Ball Granulating Machine
>> Principle
This machine makes damp granule into beautiful pellet by setting rotating centrifugal disk, blower, and pneumatic nozzle.Feed damp granule into  rotating centrifugal disk, start fan then start rotating centrifugal disk. It can make the dampgranule in float and circle by the air from gap, rotating centrifugal strength and itself gravity, appear circle rope-turning movement and become high-degree ball shape pellet.
>> Applications
With the special design of rotor structure, the machine makes various wet grains into the perfect ball shape pellets. It is
the desired equipment for making the capsules and pills of traditional Chinese medicine.
1. Pharmaceutical, Food Industries
2. Cosmetic, Dyestuff, Coloring Industries
3. Ceramic Industry
>> Features
1. Produce pellet size between 0.5~2.0mm
2. Process long granule becomes pellet.
3. Simple operation & effective operation time
>> Technical parameters
| spec |
Power (kw) |
Production capacity (kg/h) |
| φ230 |
0.75 |
10-100 |
| φ400 |
2.2 |
20-150 |
| φ700 |
3.7 |
30-200 |
| φ1000 |
5.5 |
40-300 |
|
|
|
